UCT200 Series - Pillow Block Bearing - 3Y Bearing

UCT200 Series - Pillow Block Bearing - 3Y Bearing


UCT200 Series - Pillow Block Bearing

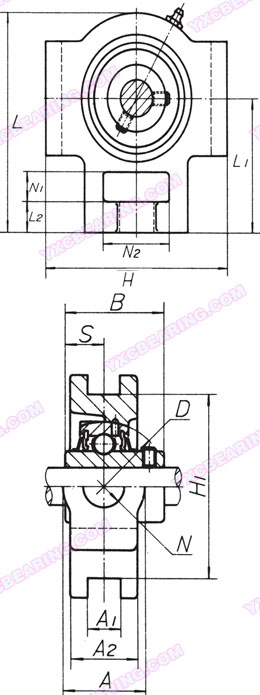

drawing of UCT200 Series - Pillow Block Bearing
Bearing No. Dimensions(mm) Weight (kg) Bearing NO. Housing NO.
B L L1 L2 H H1 A A1 A2 N N1 N2
UCT201 27.4 94 61 10 89 76 32 12 21 19 16 32 0.79 UC201 T201
UCT202 27.4 94 61 10 89 76 32 12 21 19 16 32 0.78 UC202 T202
UCT203 27.4 94 61 10 89 76 32 12 21 19 16 32 0.77 UC203 T203
UCT204 31 94 61 10 89 76 32 12 21 19 16 32 0.81 UC204 T204
UCT205 34.1 97 62 10 89 76 32 12 24 19 16 32 0.92 UC205 T205
UCT206 38.1 113 70 10 102 89 32 12 28 22 16 37 1.01 UC206 T206
UCT207 42.9 129 78 13 102 89 37 12 30 22 16 37 1.70 UC207 T207
UCT208 49.2 144 88 16 114 102 49 16 33 29 19 49 2.43 UC208 T208
UCT209 49.2 144 87 16 117 102 49 16 35 29 19 49 2.58 UC209 T209
UCT210 51.6 149 90 16 117 102 49 16 37 29 19 49 2.78 UC210 T210
UCT211 55.6 171 106 19 146 130 64 22 38 35 25 64 3.82 UC211 T211
UCT212 65.1 194 119 19 146 130 64 22 42 35 32 64 4.90 UC212 T212
UCT213 65.1 224 137 21 167 151 70 26 44 41 32 70 7.30 UC213 T213
UCT214 74.6 224 137 21 167 151 70 26 46 41 32 70 7.36 UC214 T214
UCT215 77.8 232 140 21 167 151 70 26 48 41 32 70 7.78 UC215 T215
UCT216 82.6 235 140 21 184 165 70 26 51 41 32 70 8.50 UC216 T216
UCT217 85.7 260 162 29 198 173 73 30 54 48 38 73 11.46 UC217 T217
