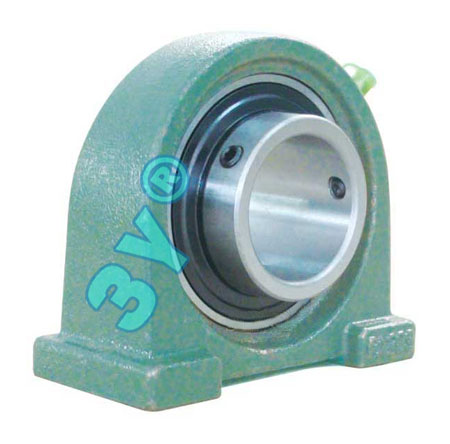

UCPA200 Series - Pillow Block Bearing - 3Y Bearing
UCPA200 Series - Pillow Block Bearing

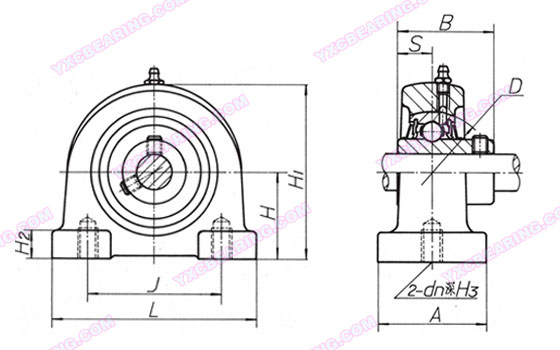

| Bearing No. | Dimensions(mm) | Weight (kg) | Bearing NO. | Housing NO. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | L | J | H | H1 | H2 | H3 | A | De | ||||
| UCPA201 | 27.4 | 76 | 52 | 30.2 | 62 | 11 | 12 | 40 | M10 | 0.6 | UC201 | PA201 |
| UCPA202 | 27.4 | 76 | 52 | 30.2 | 62 | 11 | 12 | 40 | M10 | 0.6 | UC202 | PA202 |
| UCPA203 | 27.4 | 76 | 52 | 30.2 | 62 | 11 | 12 | 40 | M10 | 0.6 | UC203 | PA203 |
| UCPA204 | 31.0 | 76 | 52 | 30.2 | 62 | 11 | 12 | 40 | M10 | 0.7 | UC204 | PA204 |
| UCPA205 | 34.1 | 84 | 56 | 36.5 | 75 | 12 | 15 | 45 | M10 | 0.8 | UC205 | PA205 |
| UCPA206 | 38.1 | 94 | 66 | 42.9 | 84 | 12 | 18 | 50 | M12 | 1.2 | UC206 | PA206 |
| UCPA207 | 42.9 | 110 | 80 | 47.6 | 95 | 13 | 20 | 55 | M12 | 1.7 | UC207 | PA207 |
| UCPA208 | 49.2 | 116 | 84 | 49.2 | 100 | 13 | 20 | 58 | M12 | 2.0 | UC208 | PA208 |
| UCPA209 | 49.2 | 120 | 90 | 54.2 | 108 | 13 | 22 | 60 | M12 | 2.2 | UC209 | PA209 |
| UCPA210 | 51.6 | 130 | 94 | 57.2 | 116 | 14 | 25 | 64 | M16 | 2.9 | UC210 | PA210 |
