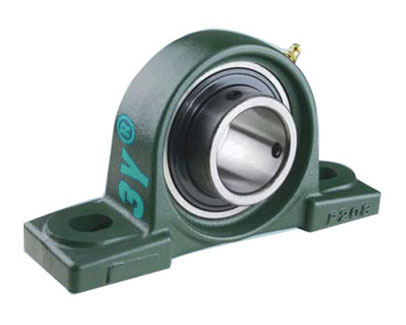

UCP200 Series - Pillow Block Bearing

HENAN PROVINCE YUXI BEARING CO.,LTD

China Professional Bearing Manufacturer. Since 1966 ...

Mail: 3y@yxcbearing.com

Sales Hot Line: 0086-158 57939029

UCP200 Series - Pillow Block Bearing - 3Y Bearing

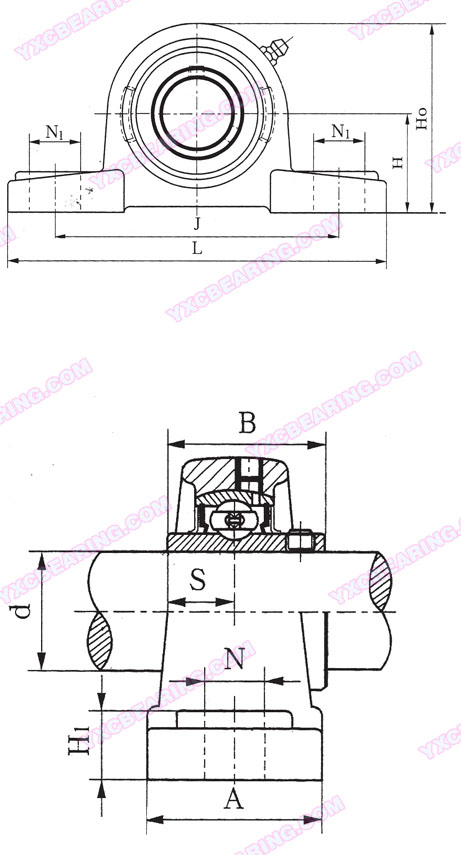

Bearing No.	Dimensions(mm)										Weight (kg)	Bearing NO.	Housing NO.
Bearing No.	B	L	J	H	H0	H1	A	N	N1	De	Weight (kg)	Bearing NO.	Housing NO.
UCP201	27.4	125	96	30.2	57	14	36	13	19	M10	0.6	UC201	P201
UCP202	27.4	125	96	30.2	57	14	36	13	19	M10	0.6	UC202	P202
UCP203	27.4	125	96	30.2	57	14	36	13	19	M10	0.6	UC203	P203
UCP204	31	127	95	33.3	65	14	38	13	19	M10	0.7	UC204	P204
UCP205	34.1	140	105	36.5	71	15	38	13	19	M10	0.8	UC205	P205
UCP206	38.1	165	121	42.9	83	17	48	17	23	M14	1.3	UC206	P206
UCP207	42.9	167	127	47.6	93	18	48	17	23	M14	1.6	UC207	P207
UCP208	49.2	184	137	49.2	100	18	54	17	23	M14	1.9	UC208	P208
UCP209	49.2	190	146	54	106	20	54	17	23	M14	2.2	UC209	P209
UCP210	51.6	206	159	57.2	114	21	60	20	26	M16	2.6	UC210	P210
UCP211	55.6	219	171	63.5	126	23	60	20	26	M16	3.3	UC211	P211
UCP212	65.1	241	184	69.8	138	25	70	20	26	M16	4.6	UC212	P212
UCP213	65.1	265	203	76.2	151	27	70	25	31	M20	5.9	UC213	P213
UCP214	74.6	266	210	79.4	157	27	72	25	31	M20	6.6	UC214	P214
UCP215	77.8	275	217	82.6	163	28	74	25	31	M20	7.4	UC215	P215
UCP216	82.6	292	232	88.9	175	30	78	25	31	M20	9.0	UC216	P216
UCP217	85.7	310	247	95.2	187	32	83	25	31	M20	11.0	UC217	P217
UCP218	96.0	327	262	101.6	200	33	88	27	33	M22	13.0	UC218	P218
UCP220	108	380	308	115	225	40	95	30	38	M24	16.0	UC220	P220
