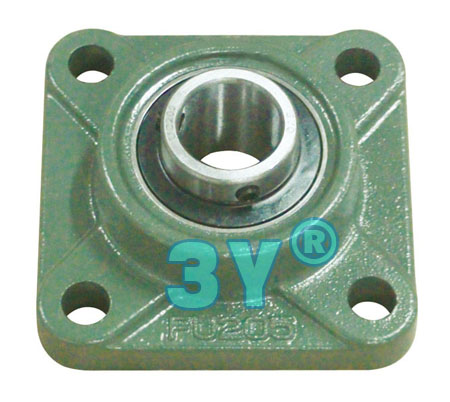

UCFU200 Series - Pillow Block Bearing

HENAN PROVINCE YUXI BEARING CO.,LTD

China Professional Bearing Manufacturer. Since 1966 ...

Mail: 3y@yxcbearing.com

Sales Hot Line: 0086-158 57939029

UCFU200 Series - Pillow Block Bearing - 3Y Bearing

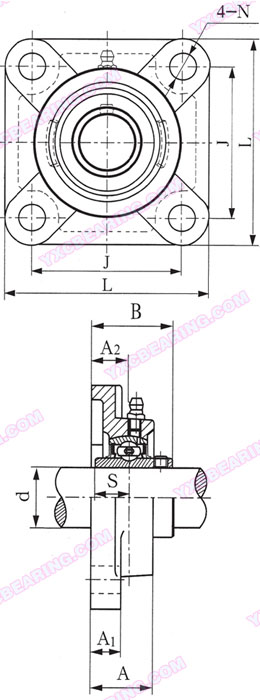

Bearing No.	Dimensions(mm)								Weight (kg)	Bearing NO.	Housing NO.
Bearing No.	B	L	J	A	A1	A2	N	De	Weight (kg)	Bearing NO.	Housing NO.
UCFU201	27.4	76	54	27	11	17	12	M10	0.7	UC201	FU201
UCFU202	27.4	76	54	27	11	17	12	M10	0.6	UC202	FU202
UCFU203	27.4	76	54	27	11	17	12	M10	0.6	UC203	FU203
UCFU204	31	86	63.5	30	11	19	12	M10	0.7	UC204	FU204
UCFU205	34.1	95	70	30	13	19	12	M10	0.9	UC205	FU205
UCFU206	38.1	108	82.5	33	13	20	12	M10	1.1	UC206	FU206
UCFU207	42.9	117	92	36	15	21	14	M12	1.5	UC207	FU207
UCFU208	49.2	130	101.5	39	15	24	16	M14	1.9	UC208	FU208
UCFU209	49.2	137	105	40	16	24	16	M14	2.3	UC209	FU209
UCFU210	51.6	143	111	46	16	28	19	M16	2.7	UC210	FU210
UCFU211	55.6	162	130	49	18	31	19	M16	3.9	UC211	FU211
UCFU212	65.1	175	143	53	18	34	19	M16	4.7	UC212	FU212
UCFU213	65.1	187	149.5	52	21	34	19	M16	5.7	UC213	FU213
UCFU214	74.6	193	152	54	22	35	19	M16	6.1	UC214	FU214
UCFU215	77.8	200	159	58	22	35	19	M16	6.9	UC215	FU215
UCFU216	82.6	208	165	58	22	35	23	M20	8.1	UC216	FU216
UCFU217	85.7	220	175	63	24	36	23	M20	9.3	UC217	FU217
UCFU218	96.0	235	187	68	24	42	23	M20	11	UC218	FU218
UCFU220	108	265	210	74	28	44	27	M22	12	UC220	FU220
