UCFB200 Series - Pillow Block Bearing - 3Y Bearing

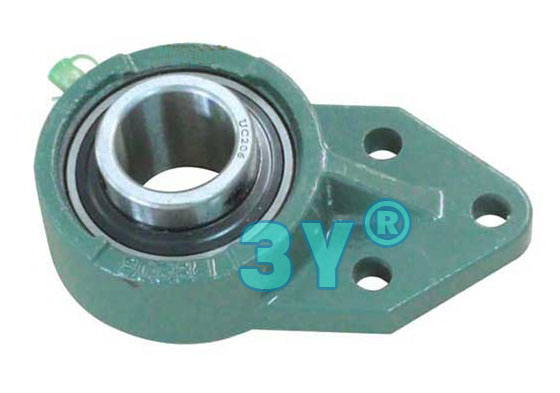

UCFB200 Series - Pillow Block Bearing

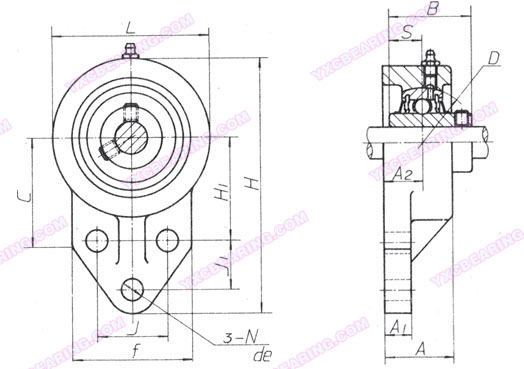

| Bearing No. | Dimensions(mm) | Weight (kg) | Bearing NO. | Housing NO. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | L | J | J1 | H | H1 | C | f | A | A1 | A2 | N | De | ||||
| UCFB201 | 27.4 | 62 | 32 | 27 | 110 | 42 | 52 | 52 | 25.5 | 13 | 15 | 10 | M8 | 0.7 | UC201 | FB201 |
| UCFB202 | 27.4 | 62 | 32 | 27 | 110 | 42 | 52 | 52 | 25.5 | 13 | 15 | 10 | M8 | 0.6 | UC202 | FB202 |
| UCFB203 | 27.4 | 62 | 32 | 27 | 110 | 42 | 52 | 52 | 25.5 | 13 | 15 | 10 | M8 | 0.6 | UC203 | FB203 |
| UCFB204 | 31.0 | 62 | 32 | 27 | 110 | 42 | 52 | 52 | 25.5 | 13 | 15 | 10 | M8 | 0.7 | UC204 | FB204 |
| UCFB205 | 34.1 | 68 | 34 | 27 | 116 | 45 | 52 | 56 | 27 | 13 | 16 | 10 | M8 | 0.8 | UC205 | FB205 |
| UCFB206 | 38.1 | 78 | 40 | 29 | 130 | 50 | 55 | 65 | 31 | 13 | 18 | 10 | M8 | 1.0 | UC206 | FB206 |
| UCFB207 | 42.9 | 90 | 46 | 32 | 144 | 55 | 62 | 70 | 34 | 15 | 19 | 10 | M8 | 1.3 | UC207 | FB207 |
| UCFB208 | 49.2 | 100 | 50 | 41 | 164 | 60 | 72 | 78 | 36 | 16 | 21 | 12 | M10 | 1.4 | UC208 | FB208 |
| UCFB209 | 49.2 | 106 | 54 | 43 | 174 | 65 | 76 | 80 | 38 | 18 | 22 | 12 | M10 | 2.2 | UC209 | FB209 |
| UCFB210 | 51.6 | 112 | 58 | 46 | 184 | 68 | 82 | 86 | 40 | 18 | 22 | 12 | M10 | 2.5 | UC210 | FB210 |
